• Model NO.：VU-602-001
• Product Name：Air Pressure Mattress with Pump
• Function：Anti-Bedsore and Anti-Decubitus
• Working Voltage：AC 110V,220V; 50Hz,60Hz
• Mattress Size：200(L)*90(W)Cm
• Transport Package：1PCS,PE Bag, 1bag,Gift Box.
• Specification：34*31*32CM
• Trademark：neutral or customize
• Origin：Xiamen, China
• HS Code：9019101000
• Production Capacity：5000 Sets Each Month

High-End Air Tubular Mattress

Top Quality High-Tec Pump System

Pump

Pad/ mattress

Item: VU602

Item: VU6007

Power supply: AC 110V/220V; 50~60Hz

Size: 200cm (L)*90cm(W)

Air output:: 6-8 liter/min

22 pcs inflatable air tubulars

Pressure range: 20mmHg-110mmHg

Top cover: Nylon PU/ strength

Power consumption: 20W;

Air cells: Nylon/ PVC/ TPU

Fuse: 1A

Bottom: tarpaulin/ nylon PU

Size: 30cm(L) x 24cm(W) x 13cm(H)

Mattress weight: 6kg

Weight: 2kg

Weight Capacity: ≤135kg

Certification: CE, FDA, ISO13485

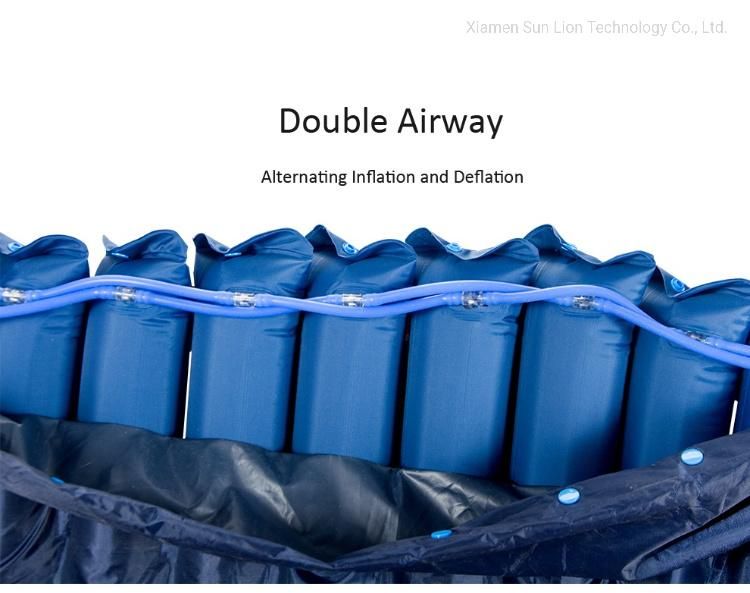

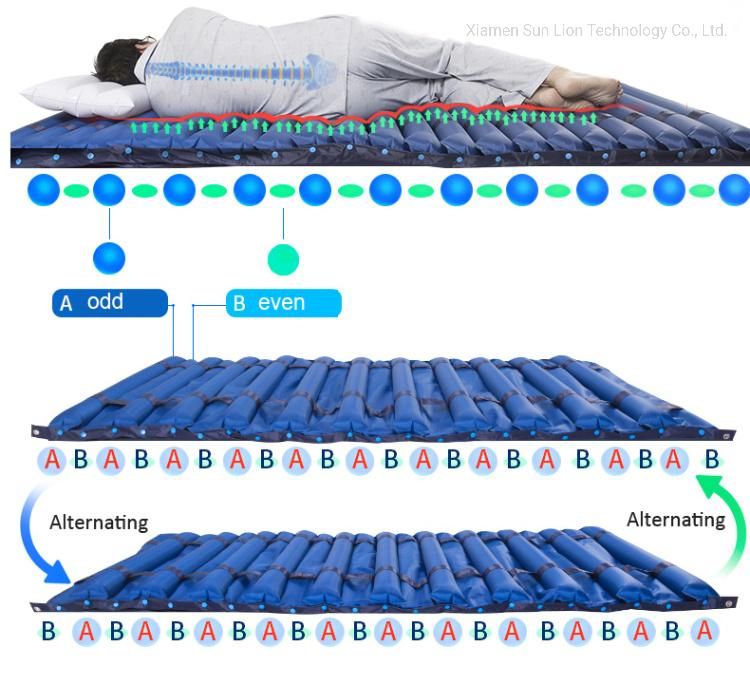

Alternating inflation and deflation circularly, compression and decompression of air waves help patients to change body position, increasing the blood circulation, anti bedsore and prevent decubitus.

Details:

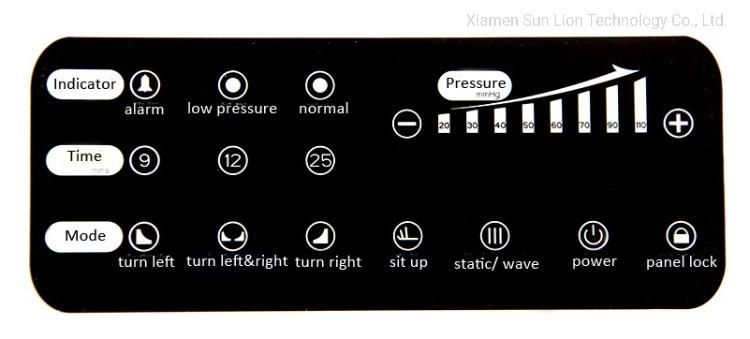

1. high-end pump (compressor), large display LED touch keypad control,

- Turn over at regular intervals: turn over one time each hour

- Three kinds of wave circulation time: 9 minutes, 12 minutes, 25 minutes

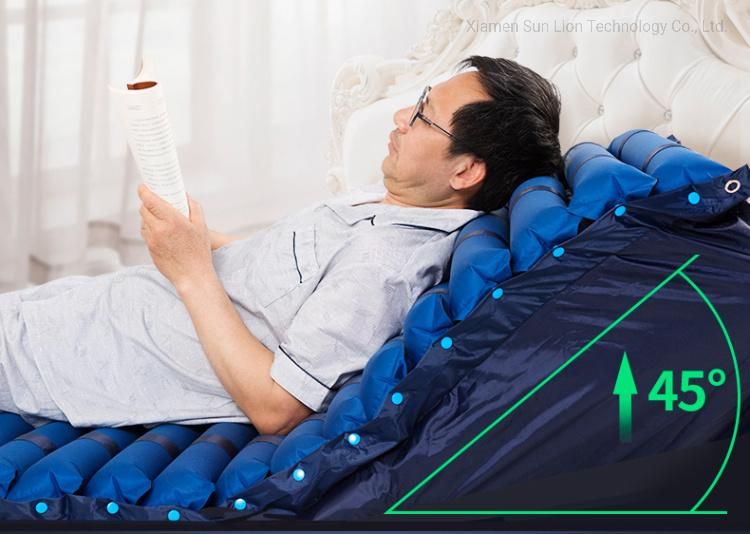

- 45° sit up

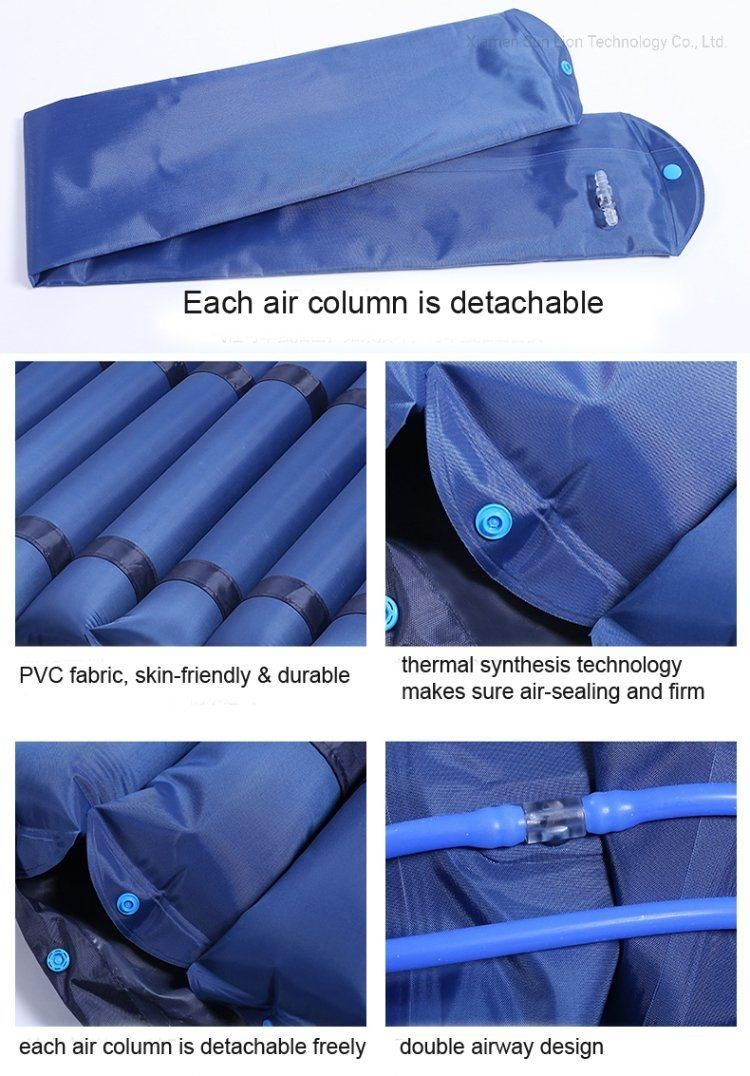

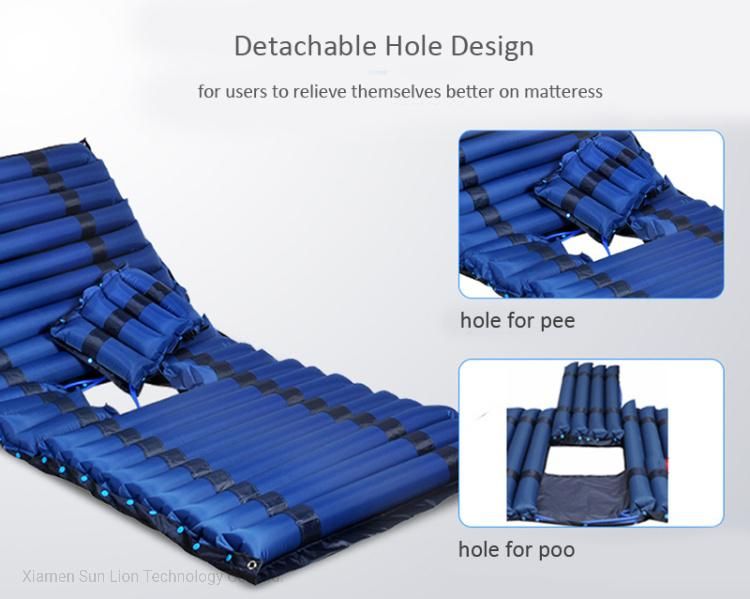

2. Medical grade fabric material, high strength, durable, breathable and skin-friendly. Detachable tubular cells design is used flexibly.

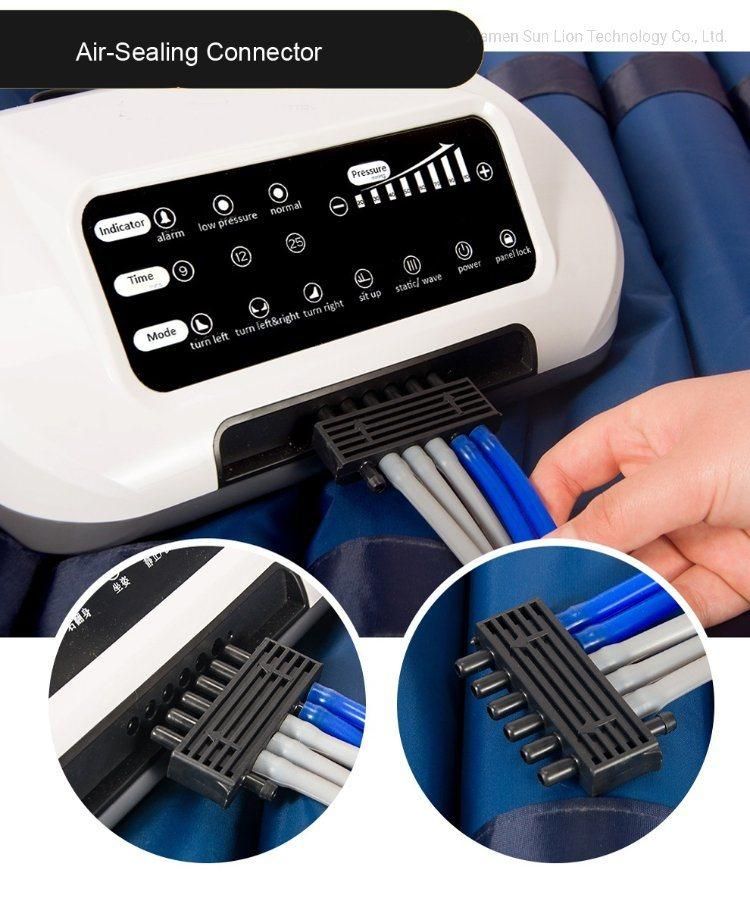

3. Quick main connector to machine

4. Considerate Design for patient

Installation/ Use

1. Unroll the mattress.

2. Position it on the bed.

3. Secure it to the bed with the fixing straps.

4. Put the compressor (pump) on flat.

5. Connect the mattress feed pipes to the compressor (pump) connector by matching the appropriate outlets.

6. Connect the electrical power supply cable to the compressor (pump).

7. Guide it along the bed to the mattress plug socket and plug.

8. Press switch to turn on the compressor (pump).

9. Before positioning the patient onto the mattress, wait until the mattress has been fully inflated.

10. Select the pressure corresponding the patient's morphology.
